MRFG35030R5
3
RF Device Data
Freescale Semiconductor
Z1 0.065″
x 0.500
″Microstrip
Z2 0.065″
x 0.185
″Microstrip
Z3 0.115″
x 0.350
″Microstrip
Z4 0.065″
x 0.215
″Microstrip
Z5, Z6 0.020″
x 0.527
″Microstrip
Z7 0.085″
x 0.205
″Microstrip
Z8 0.065″
x 0.230
″Microstrip
Z9 0.065″
x 0.814
″
Microstrip
PCB Rogers RO4350, 0.030″, εr
= 3.5

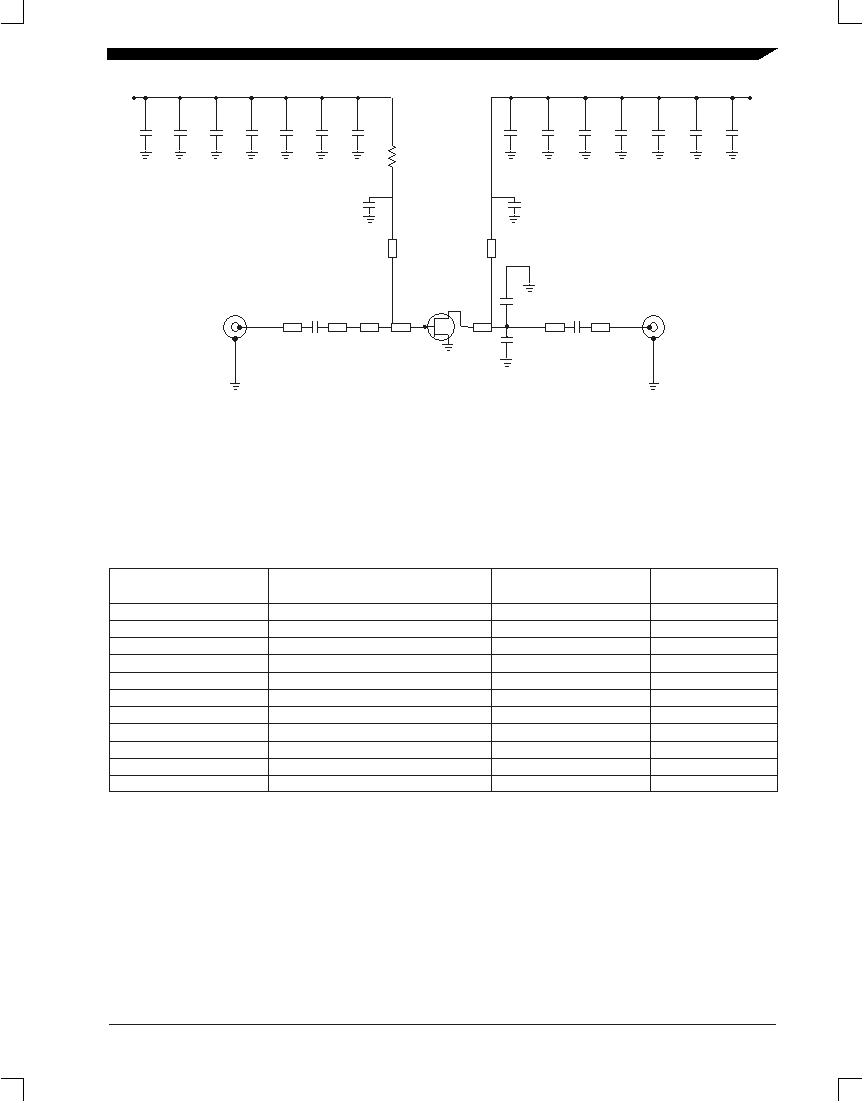

Figure 1. MRFG35030 Test Circuit Schematic
Table 4. MRFG35030 Test Circuit Component Designations and Values
Part
Description
Part Number
Manufacturer
C1, C2, C17
6.8 pF Chip Capacitors
100A6R8CP500X
ATC
C3, C16
10 pF Chip Capacitors
100A100JP500X
ATC
C4, C15
100 pF Chip Capacitors
100A101JP500X
ATC
C5, C14
100 pF Chip Capacitors
100B101JP500X
ATC
C6, C13
1000 pF Chip Capacitors
100B102JP500X
ATC
C7, C12
0.1 μF Chip Capacitors
CDR33BX104AKWS
Newark
C8, C11
39K Chip Capacitors
200B393KP50X
ATC
C9, C10
22 μF, 35 V Tantalum Capacitors
T491X226K035AS
ATC
C18
1.0 pF Chip Capacitor
08051J1R0BBT
AVX
C19
0.7 pF Chip Capacitor
08051J0R7BBT
AVX
C20
0.3 pF Chip Capacitor
08051J0R3BBT
AVX
R1
10 , 1/4 W, 1% Resistor
D55342M07B10J0R
Dale
